Designed for the safe and efficient handling of heavy components, our Lifting Brackets provide a reliable lifting solution for 28 mm tables and similar equipment. Two models are available to meet a range of lifting needs:

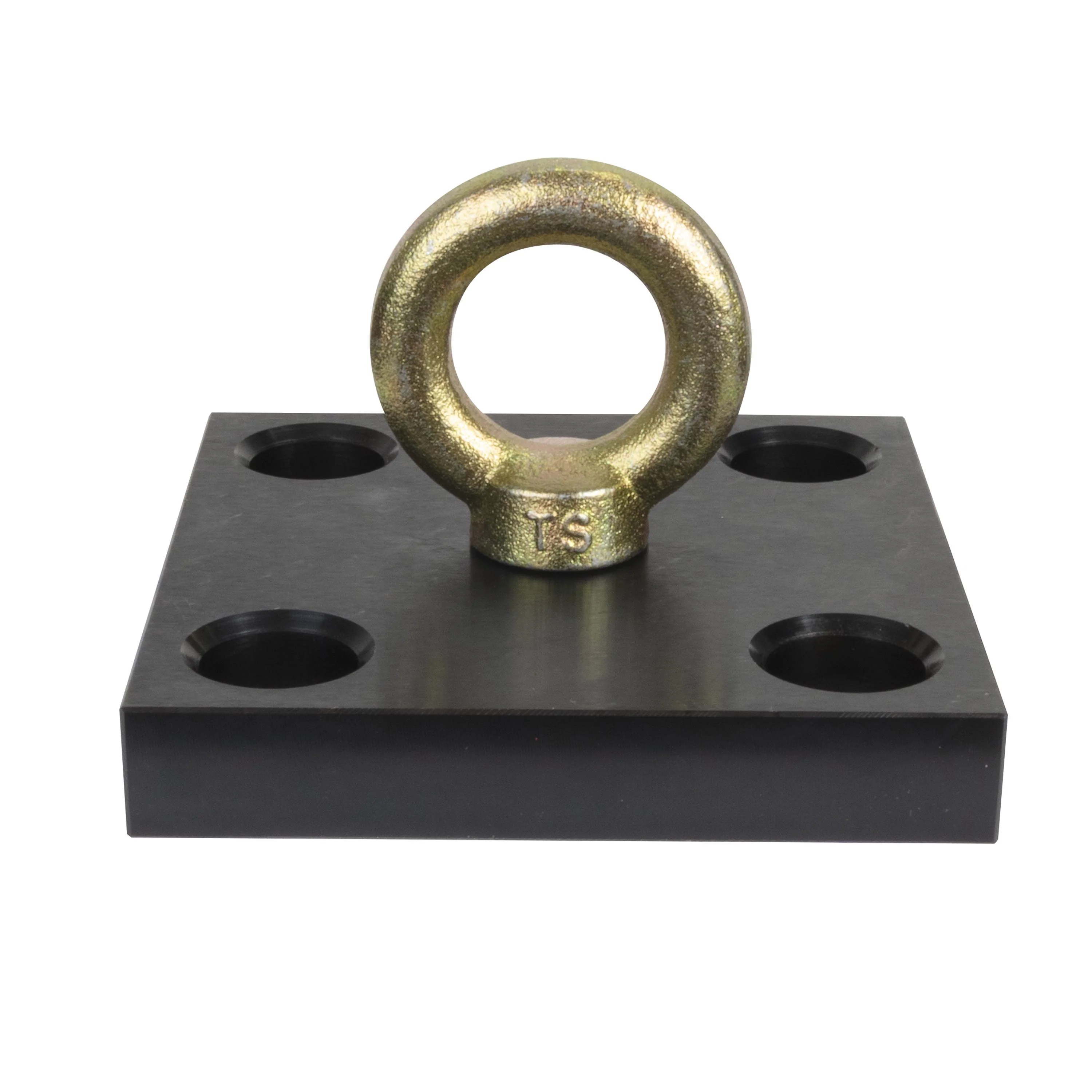

1. Lifting Bracket w/ Eye Nut (T28-97150)

Load Capacity: Rated up to 1,800 kg for secure lifting.
Quick Installation: Fastens using four clamping bolts (T28-46450).
Purpose: Ideal for stable vertical lifts; lateral forces must be avoided on the eye nut to maintain load capacity.
Safety Note: Ensure eye nut is fully threaded and seated flat on the bracket. Clamping bolts must be fully seated to achieve proper clamping force.

2. Lifting Bracket w/ Swivel Hoist Ring (T28-97159)

Heavy-Duty Capacity: Rated up to 2,700 kg for more demanding lifting tasks.
Flexible Mounting: Compatible with ball lock bolts (T28-46450 or T28-47455) for quick and secure setup.
Forged-Steel Construction: Built for maximum durability and long service life.
Extended Reach: Extra clearance accommodates larger lifting hooks.
Full Range of Motion:180° pivot and 360° swivel for safe lifting from virtually any angle.

Shared Features & Safety Guidelines

Compatibility: Both models are fully compatible with 28 mm tables.
Usage Guidelines:
- Always ensure lifting components (Eye Nut or Hoist Ring) are fully threaded and seated flat on the bearing surface.
- Do not lift objects more than 100 mm off the ground.
- Never allow personnel underneath lifted or suspended loads.
- Follow all applicable material handling safety standards.

Choose the Eye Nut model (T28-97150) for standard vertical lifts or the Swivel Hoist Ring model (T28-97159) for enhanced flexibility and higher-capacity lifting. Both ensure quick setup, safe operation, and long-lasting performance in industrial and workshop environments.

28 mm Table Accessories

Table Legs, Alpha 28

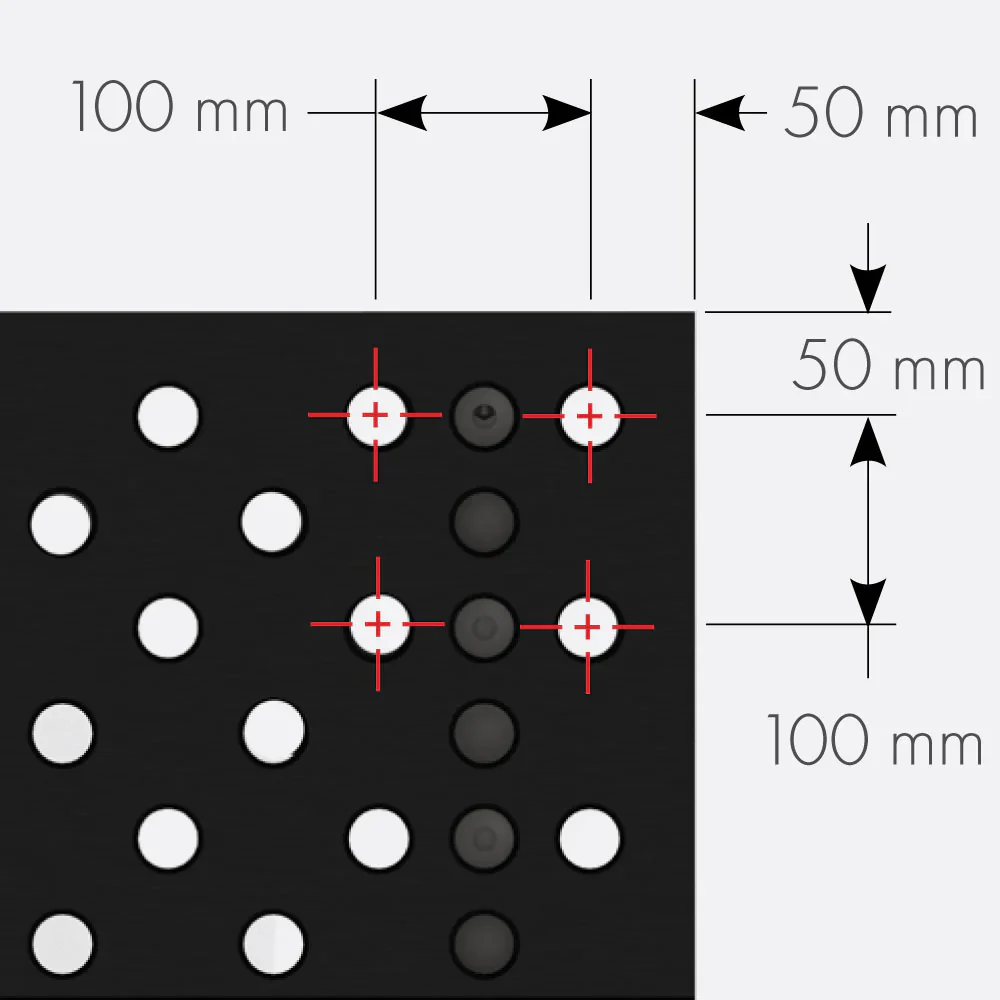

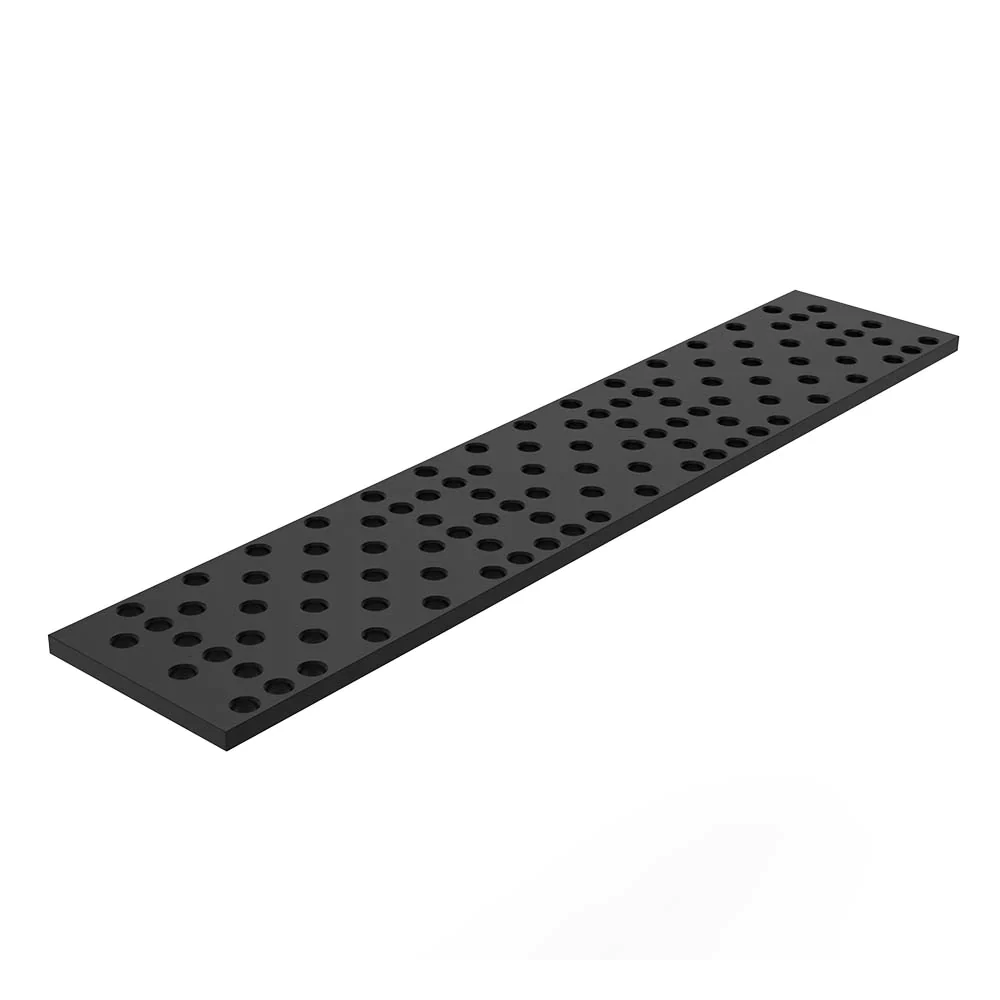

Reversible Table Plates, 28 mm

Lifting Brackets, 28 mm

Anchoring Pad, for Alpha 28 Tables

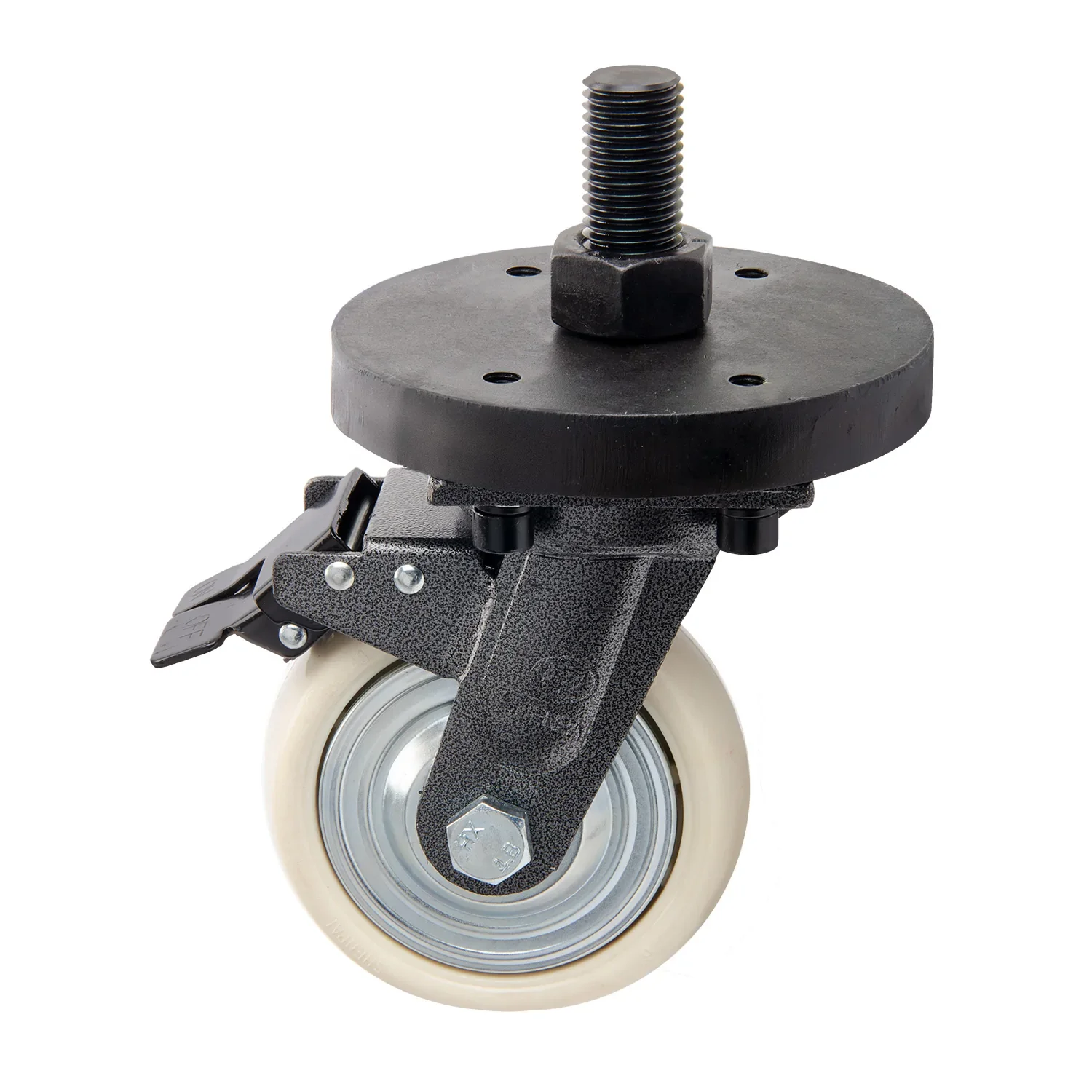

Caster, for Alpha 28 tables
